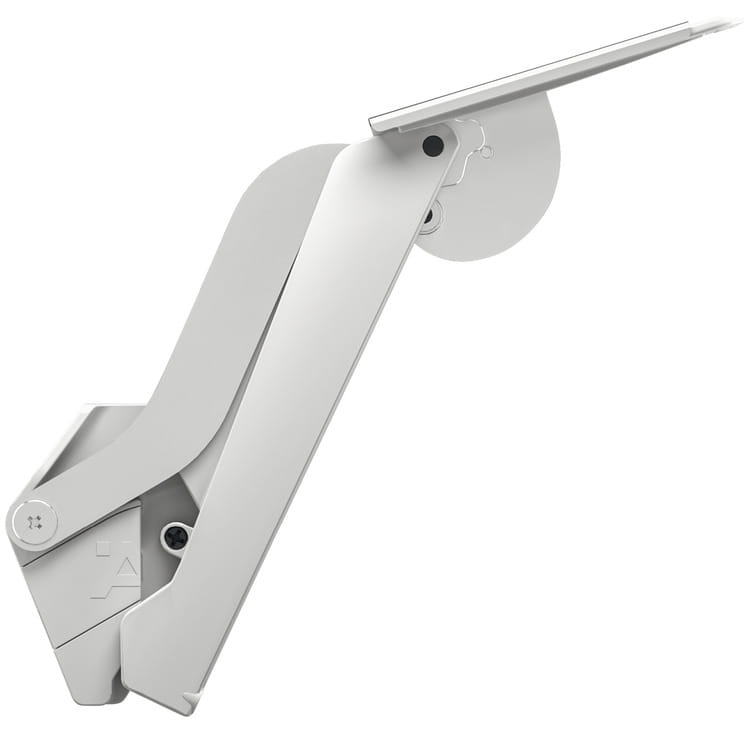

Podnośnik frontu model 18B PUSH FREE SPACE BIAŁY /2sztuki/ HÄFELE 37227705
dodaj do przechowalni
0
Opis
Area of application
Material
front fixing bracket and support lever: Steel
Finish/colour
Opening angle
Adjustment facility
Installation
front panel fixing without tools, for sliding onto pre-mounted fixing screws

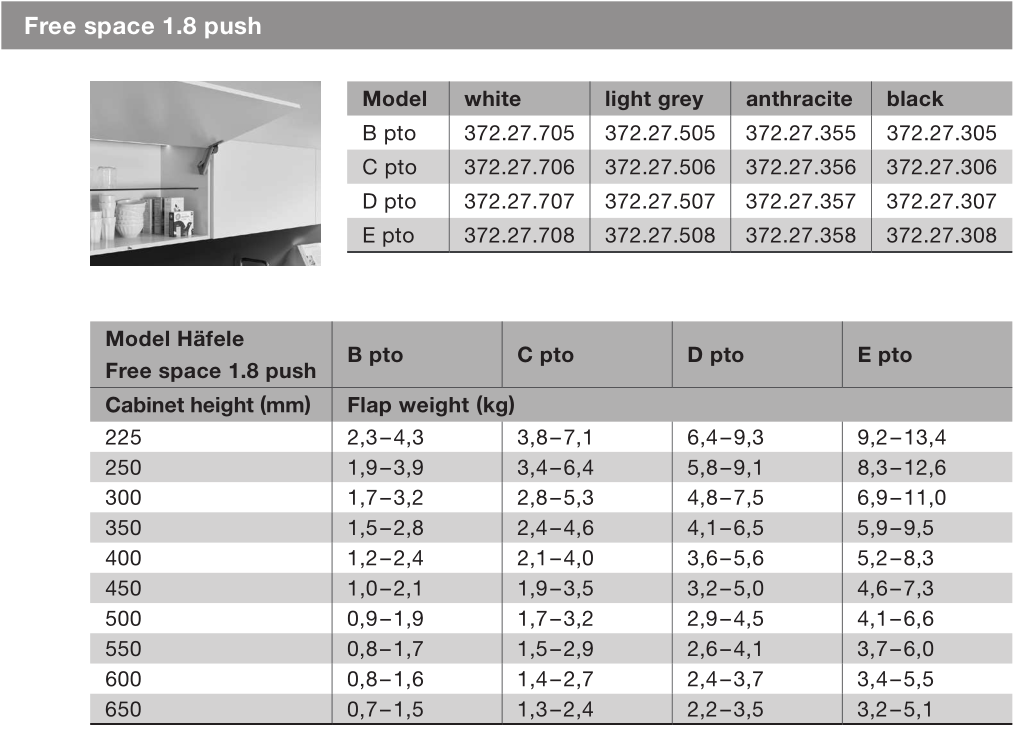

Model Häfele Free space 1.8 push |
B pto |
C pto |
D pto |
E pto |
|---|---|---|---|---|
Cabinet height mm |
Flap weight kg |
|||
|
225 |
2.3–4.3 |
3.8–7.1 |
6.4–9.3 |
9.2–13.4 |
|
250 |
1.9–3.9 |
3.4–6.4 |
5.8–9.1 |
8.3–12.6 |
|
275 |
1.9–3.5 |
3.1–5.8 |
5.3–8.2 |
7.5–12.0 |
|
300 |
1.7–3.2 |
2.8–5.3 |
4.8–7.5 |
6.9–11.0 |
|
325 |
1.6–3.0 |
2.6–4.9 |
4.4–7.0 |
6.4–10.2 |
|
350 |
1.5–2.8 |
2.4–4.6 |
4.1–6.5 |
5.9–9.5 |
|
375 |
1.3–2.6 |
2.2–4.3 |
3.8–6.0 |
5.5–8.8 |
|
400 |
1.2–2.4 |
2.1–4.0 |
3.6–5.6 |
5.2–8.3 |
|
425 |
1.1–2.3 |
2.0–3.8 |
3.4–5.3 |
4.9–7.8 |
|
450 |
1.0–2.1 |
1.9–3.5 |
3.2–5.0 |
4.6–7.3 |
|
475 |
1.0–2.0 |
1.8–3.4 |
3.0–4.7 |
4.3–7.0 |
|
500 |
0.9–1.9 |
1.7–3.2 |
2.9–4.5 |
4.1–6.6 |
|
525 |
0.9–1.8 |
1.6–3.0 |
2.7–4.3 |
3.9–6.3 |
|
550 |
0.8–1.7 |
1.5–2.9 |
2.6–4.1 |
3.7–6.0 |
|
575 |
0.8–1.7 |
1.4–2.8 |
2.5–3.9 |
3.6–5.7 |
|
600 |
0.8–1.6 |
1.4–2.7 |
2.4–3.7 |
3.4–5.5 |
|
625 |
0.7–1.5 |
1.3–2.5 |
2.3–3.6 |
3.3–5.3 |
|
650 |
0.7–1.5 |
1.3–2.4 |
2.2–3.5 |
3.2–5.1 |

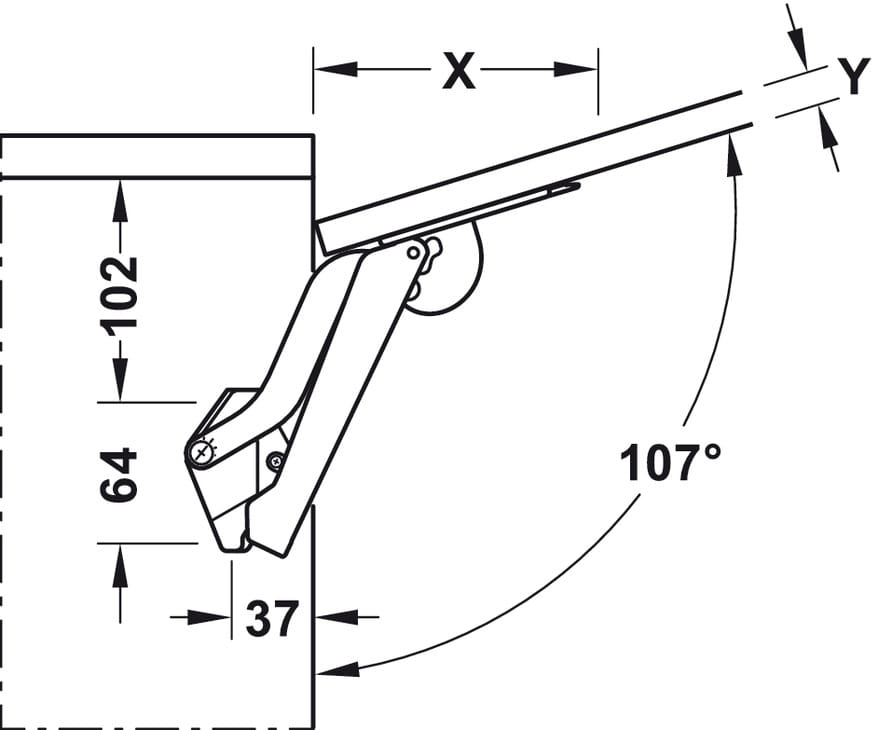

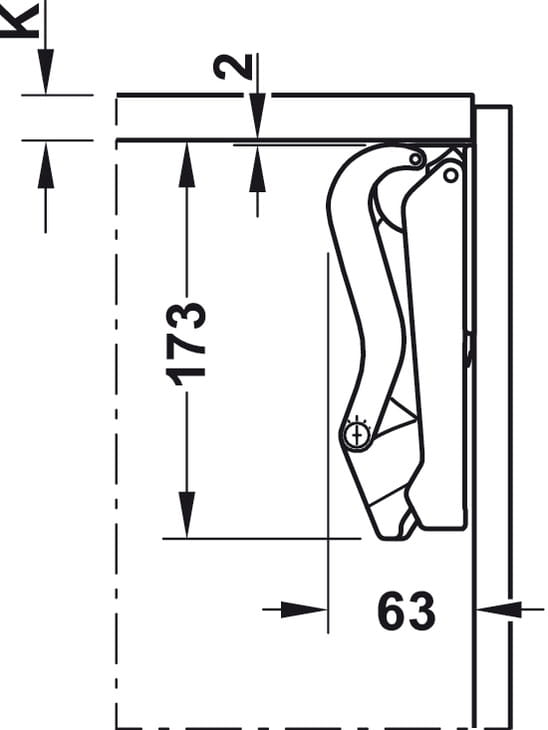

Planning
 |
 |
 |
Front panel thickness Y mm |
16 |
18 |
19 |
22 |
24 |
26 |
28 |
|---|---|---|---|---|---|---|---|
|
Distance X mm (with cabinet top panel thickness 16 mm) |
117 |
110 |
107 |
96 |
90 |
83 |
76 |

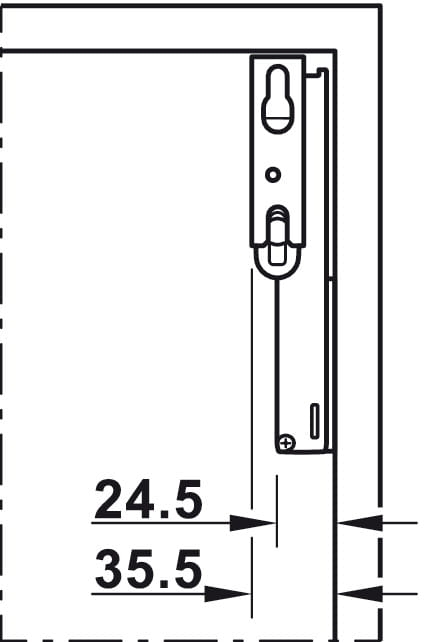

| Push catch installation |
|---|
 |
Supplied with
1 stay flap fitting set (1 piece each left/right)
4 fixing screws for front panel
1 Free push catch
1 set of installation instructions with paper drilling template for side panel
Order reference
The model selection of the stay flap fitting for front panels without handle depends on the cabinet height and flap weight. Model selection see sample measurements table.
Please order suitable screw set 372.27.600 for aluminium frame front panels from frame width 45 mm.
Please order screw-on housing for push catch separately.
We recommend to use the stronger fitting model when in doubt.
